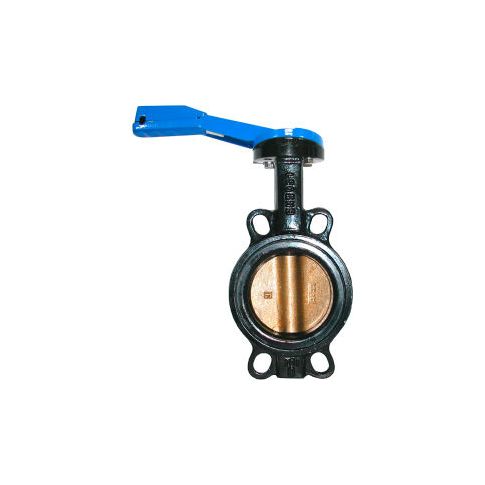

Legend Valve® T-337AB Butterfly Valve with BUNA Seals & 10 Position Handle 10" Wafer 116-428

10" t-337ab ductile iron wafer butterfly valve aluminum bronze disc 10 position lever handle -buna epoxy coated wafer body allows easy positioning between flanges. Extended neck will clear most piping insulation applications. Bi-directional flow. 100% factory tested. Rigid phenolic-backed seat allows positive bubble-tight shutoff. Raised seat face eliminates the need for companion flange gaskets . Heavy-duty lockable ten-position lever handle. Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" cold working pressure (cwp) 200 psi maximum service temperatures with pressures t-337ab & t-337ab-g compatible with media types other than steam up to 180° f at 200 psi or less flange connection features of the valve's body conform to ansi class 125/150 flange dimensions manufactured in an iso accredited facility manufactured in conformance to the following standards mss sp-67 api 609 awwa c504 en 593

Additional Information
