Legend Valve® T-335AB Butterfly Valve with EPDM Seals & 10 Position Handle 10" Wafer 116-408
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-51058B31

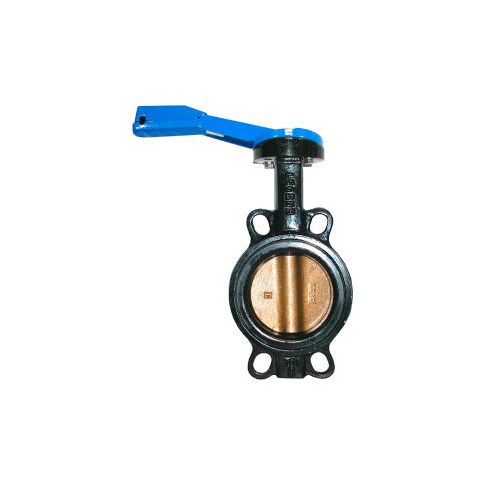

Legend Valve® T-335AB Butterfly Valve with EPDM Seals & 10 Position Handle 10" Wafer
The Legend Valve T-335AB Butterfly Valve is a high-performance solution for various industrial applications. Its epoxy-coated wafer body and extended neck design make it ideal for applications with piping insulation. The valve features bi-directional flow and 100% factory testing, ensuring reliable operation. The aluminum bronze disc and EPDM seats provide positive shut-off and bubble-tight sealing. Suitable for steam up to 250°F at 125 psi or less, this valve is compatible with a range of industries, including power generation, chemical processing, and water treatment. Its heavy-duty, lockable handle and ANSI-compliant flange dimensions make it a versatile and reliable choice.
Top product features:
- Epoxy coated wafer body allows easy positioning between flanges.
- Extended neck will clear most piping insulation applications.
- Rigid phenolic-backed seat allows positive bubble-tight shutoff.
Top product applications:
- Steam Distribution Systems
- Industrial Process Control Systems
- Power Generation Plants
10" t-335ab ductile iron wafer butterfly valve. Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" epoxy coated wafer body allows easy positioning between flanges extended neck will clear most piping insulation applications bi-directional flow 100% factory tested aluminum bronze disc epdm seats rigid phenolic-backed seat allows positive bubble-tight shutoff raised seat face eliminates the need for companion flange gaskets heavy-duty lockable ten-position lever handle cold working pressure (cwp) 200 psi working steam pressure (wsp) 125 psi compatible with steam up to 250° f at 125 psi or less flange connection features of the valve's body conform to ansi class 125/150 flange dimensions manufactured in conformance to the following standards mss sp-67 api 609 awwa c504 en 593 manufactured in an iso accredited facility
Additional Information
- UPC: 662545049045
- UNSPSC: 40141678
- Brand: LEGEND VALVE & FITTING INC
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 5.30
- Package Width: 20.00
- Package Height: 23.50
- Package Weight: 47.75
Product info last updated on May 18, 2025 3:25am UTC
Category: Valves
