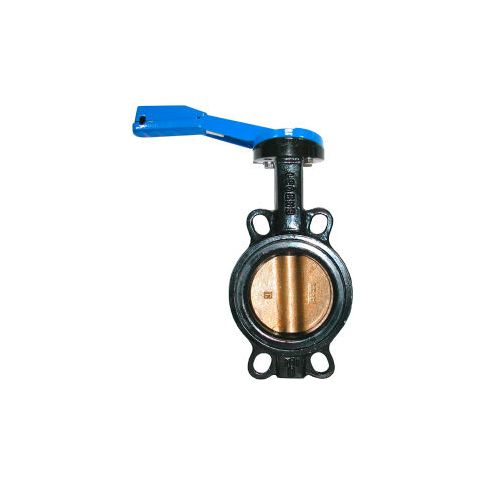

Legend Valve® T-335AB Butterfly Valve with EPDM Seals & 10 Position Handle 8" Wafer 116-407

8" t-335ab ductile iron wafer butterfly valve. Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" epoxy coated wafer body allows easy positioning between flanges extended neck will clear most piping insulation applications bi-directional flow 100% factory tested aluminum bronze disc epdm seats rigid phenolic-backed seat allows positive bubble-tight shutoff raised seat face eliminates the need for companion flange gaskets heavy-duty lockable ten-position lever handle cold working pressure (cwp) 200 psi working steam pressure (wsp) 125 psi compatible with steam up to 250° f at 125 psi or less flange connection features of the valve's body conform to ansi class 125/150 flange dimensions manufactured in conformance to the following standards mss sp-67 api 609 awwa c504 en 593 manufactured in an iso accredited facility
