Legend Valve® T-335AB Butterfly Valve with EPDM Seals & 10 Position Handle 3" Wafer 116-403
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-51012B31

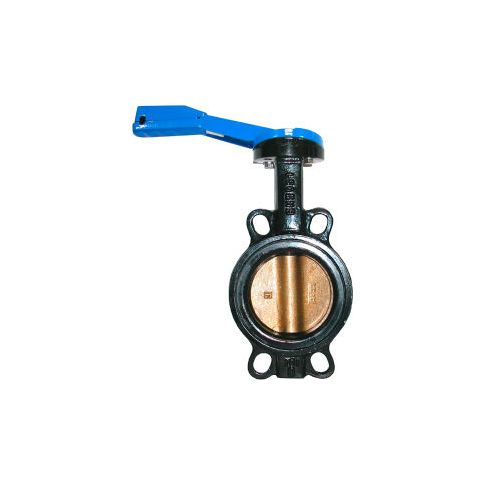

Legend Valve® T-335AB Butterfly Valve with EPDM Seals & 10 Position Handle 3" Wafer
The Legend Valve T-335AB Butterfly Valve is a reliable and efficient solution for various industrial applications. Its epoxy-coated wafer body ensures easy positioning between flanges, while the extended neck allows for clear piping insulation. This valve is suitable for bi-directional flow and features a 100% factory-tested aluminum bronze disc and EPDM seats for bubble-tight shutoff. Ideal for steam applications up to 250°F at 125 psi or less, it's also compatible with various piping systems and meets ANSI, API, and AWWA standards. With its heavy-duty, lockable handle and cold working pressure of 200 psi, this valve is perfect for demanding industrial environments.
Top product features:
- Epoxy coated wafer body allows easy positioning between flanges
- Extended neck will clear most piping insulation applications
- Rigid phenolic-backed seat allows positive bubble-tight shutoff
Top product applications:
- Steam distribution systems
- Piping insulation applications
- Industrial process control systems
3" t-335ab ductile iron wafer butterfly valve. Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" epoxy coated wafer body allows easy positioning between flanges extended neck will clear most piping insulation applications bi-directional flow 100% factory tested aluminum bronze disc epdm seats rigid phenolic-backed seat allows positive bubble-tight shutoff raised seat face eliminates the need for companion flange gaskets heavy-duty lockable ten-position lever handle cold working pressure (cwp) 200 psi working steam pressure (wsp) 125 psi compatible with steam up to 250° f at 125 psi or less flange connection features of the valve's body conform to ansi class 125/150 flange dimensions manufactured in conformance to the following standards mss sp-67 api 609 awwa c504 en 593 manufactured in an iso accredited facility
Additional Information
- UPC: 662545020648
- UNSPSC: 40141678
- Brand: LEGEND VALVE & FITTING INC
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 4.90
- Package Width: 14.45
- Package Height: 8.15
- Package Weight: 7.96
Product info last updated on March 3, 2026 7:00pm UTC
Category: Valves
