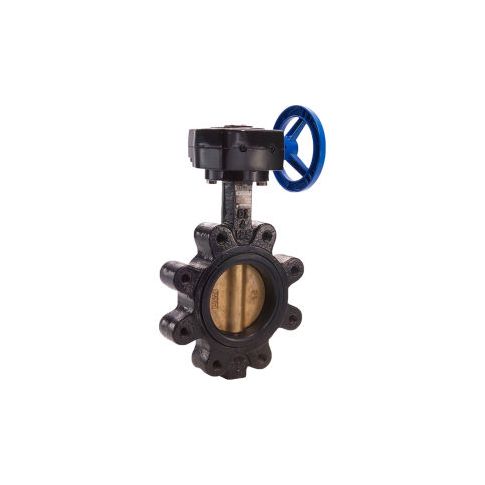

Legend Valve® T-365AB-G Butterfly Valve with EPDM Seals & Gear Operator 4" Lug 116-644

4" t-365ab-g ductile iron lug type butterfly valve. Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" aluminum bronze disc epdm seats epoxy coated lug body allows precise positioning between flanges tapped lugs and supported seat permit single-flange "dead-end" service extended neck will clear most piping insulation applications bi directional flow 100% factory tested rigid phenolic-backed seat allows positive bubble-tight shutoff raised seat face eliminates the need for companion flange gaskets equipped with a pre-installed gear operator and handwheel cold working pressure (cwp) 200 psi working steam pressure (wsp) 125 psi compatible with steam up to 250° f at 125 psi or less flange connection features of the valve's body conform to ansi class 125/150 flange dimensions manufactured in conformance to the following standards mss sp-67 api 609 awwa c504 en 593 manufactured in an iso accredited facility
