Legend Valve® T-365AB Butterfly Valve with EPDM Seals & 10 Position Handle 5" Lug 116-605
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-50855B31

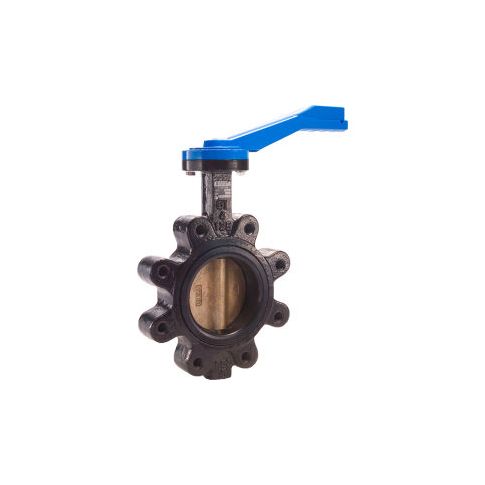

Legend Valve® T-365AB Butterfly Valve with EPDM Seals & 10 Position Handle 5" Lug
The Legend Valve T-365AB Butterfly Valve is a high-performance solution for precise control and shut-off in industrial applications. With its aluminum bronze disc and EPDM seats, this valve ensures bubble-tight shutoff and bi-directional flow, making it ideal for steam service up to 250°F at 125 psi or less. The valve's features, including a heavy-duty lockable ten-position handle and rigid phenolic-backed seat, provide reliable operation and precise positioning. Suitable for applications such as power plants, chemical processing, and HVAC systems, this valve meets or exceeds industry standards and is manufactured in an ISO-accredited facility, ensuring consistent quality and performance.
Top product features:
- Aluminum bronze disc provides corrosion resistance
- Epoxy coated lug body allows for precise positioning between flanges
- Rigid phenolic-backed seat allows for 100% bubble-tight shutoff
Top product applications:
- Steam distribution systems
- Dead-end service
- Piping insulation applications
5" t-365ab ductile iron lug type butterfly valve. Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" aluminum bronze disc epdm seats epoxy coated lug body allows precise positioning between flanges tapped lugs and supported seat permit single-flange "dead-end" service extended neck will clear most piping insulation applications bi directional flow 100% factory tested rigid phenolic-backed seat allows positive bubble-tight shutoff raised seat face eliminates the need for companion flange gaskets heavy-duty lockable ten-position handle cold working pressure (cwp) 200 psi working steam pressure (wsp) 125 psi compatible with steam up to 250° f at 125 psi or less flange connection features of the valve's body conform to ansi class 125/150 flange dimensions manufactured in conformance to the following standards mss sp-67 api 609 awwa c504 en 593 manufactured in an iso accredited facility
Additional Information
- UPC: 662545020945
- UNSPSC: 40141678
- Brand: LEGEND VALVE & FITTING INC
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 3.10
- Package Width: 14.70
- Package Height: 16.30
- Package Weight: 17.50
Product info last updated on March 19, 2026 5:31am UTC
Category: Valves
