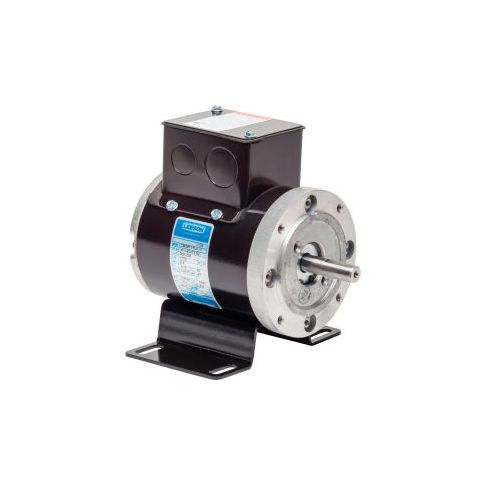

Leeson Sub-FHP Inverter Motor 1725RPM 1/4HP 38 Inverter Rated 230V 3PH 60HZ TEFC M1140172.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-7455B58
Leeson Sub-FHP Inverter Motor 1725RPM 1/4HP 38 Inverter Rated 230V 3PH 60HZ TEFC
This Leeson Sub-FHP Inverter Motor is designed for continuous duty general purpose applications, ideal for use in industrial settings where reliability and efficiency are paramount. Its rugged aluminum die cast housing and precision machined gearing provide maximum gear and bearing support, while oversized output bearings and high-carbon alloy output shaft ensure greater overhung load capacity and longer life. Suitable for a wide range of applications, including conveyor systems, pumps, and compressors, this motor offers a reliable and cost-effective solution for industrial operations. Its splash lubricated design and heavy-duty industrial oil seals minimize maintenance and downtime.
Top product features:
- Totally enclosed design for continuous duty general purpose applications.
- Precision machined gearing hardened for maximum load capability.
- Splash lubricated with permanent heavy-duty gear oil.
Top product applications:
- General purpose applications
- Continuous duty applications
- Industrial applications
Design specifications ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" sub-fhp ac gearmotors. Totally enclosed for continuous duty general purpose applications. All rated for 60/50 hz operation except hi-torque single-phase which are 60 hz only. Gearbox has rugged aluminum die cast housing for maximum gear and bearing support. Precision machined gearing hardened for maximum load capability. All gearing designed and rated to agma class 9 standards and to withstand momentary shock overload of 200. Oversized output bearings for greater overhung load capacity and longer life. High-carbon alloy output shaft provides maximum strength and rigidity. All needle bearing journals are precision-ground after heat treating to provide maximum finish and fit. Single lip spring loaded heavy-duty industrial oil seals help keep lubricant in and dirt out. Gears and bearings are splash lubricated with permanent heavy-duty gear oil.
Additional Information
- UPC: 691720346860
- UNSPSC: 26101106
- Brand: Leeson Electric
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: PA
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 9.00
Product info last updated on May 28, 2024 1:50pm UTC
Category: Definite Purpose Electric Motors
