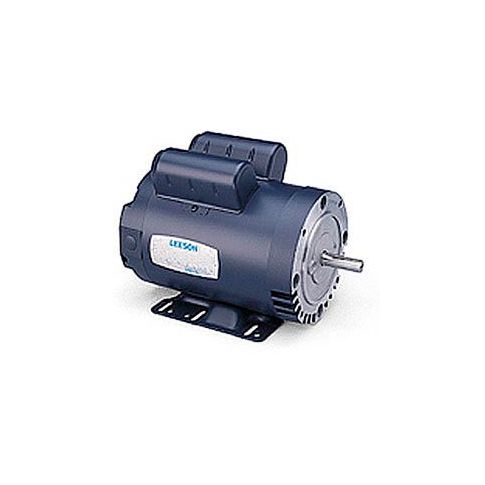

Leeson Motors - 1.5HP 115/208-230V 1725RPM DP Rigid C Mount 1.15 S.F.
This 1.5HP pressure washer motor from Leeson Electric is designed for hot or cold pressure washer applications and other single-phase installations. It features a capacitor start capacitor run construction for reduced amperage, double shield ball bearings, and a dynamically balanced rotor and shaft assembly for high efficiency and energy savings. The motor also includes a manual reset overload protector and high overload capacities for added protection. Suitable for use in a variety of applications, including car washes, construction sites, and industrial facilities, this motor provides reliable and efficient performance in demanding environments.
Top product features:
- Drip-proof design for use in harsh environments
- Capacitor start capacitor run construction for reduced amperage
- Prelubricated double shield ball bearings with operating temperature range of -20°F to +350°F
Top product applications:
- Pressure washers
- Hot or cold pressure washer applications
- Single phase installations requiring minimum starting and running amperages
Pressure washer motor 1.5hp 1725rpm 56h frame drip-proof (dp) 115/208-230v 1ph continuous duty manual thermal protection 1.15 service factor rigid c mount. Pmotors specially suited for hot or cold pressure washer applications and other single phase installations requiring minimum starting and running amperages. Capacitor start capacitor run construction for reduced amperage. Double shield ball bearings prelubricated with exxon polyrex® em lubricant having operating temperature range of -20°f to +350°f and special formulation to provide extra long life and moisture resistance. Dynamically balanced rotor and shaft assembly. High efficiency reduced amperage energy saving designs. Stator impregnated with extra heavy varnish system. High temperature copper magnet wire for high overload capacity. Grounding provision in conduit box. Manual reset overload protector protects against automatic resets. High overload capacities provided by service factor./p
Additional Information
- UPC: 691720012420
- UNSPSC: 26101111
- Brand: Leeson Electric
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: PA
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 14.63
- Package Width: 11.25
- Package Height: 10.50
- Package Weight: 41.00
Product info last updated on August 16, 2025 7:30am UTC
Category: Definite Purpose Electric Motors
