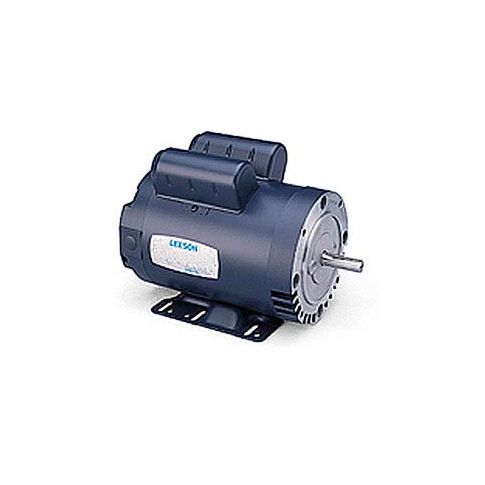

Leeson Motors Motor Electric Motor - 2HP 115/208-230V 1725RPM DP Rigid C Mount 1.15 S.F. E113281.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-7596B21
Leeson Motors Motor Electric Motor - 2HP 115/208-230V 1725RPM DP Rigid C Mount 1.15 S.F.
This 2HP electric motor from Leeson is designed for pressure washer applications, as well as other single-phase installations requiring low starting and running amperages. With a capacitor start and capacitor run construction, it reduces amperage and energy consumption. The motor features double shield ball bearings, a dynamically balanced rotor and shaft assembly, and a high-efficiency design for long life and moisture resistance. Suitable for hot or cold pressure washer applications, it also provides high overload capacity and manual reset overload protection. Its compact size and rugged construction make it ideal for a variety of industrial and commercial uses.
Top product features:
- Drip-proof design for use in wet environments
- Capacitor start capacitor run construction for reduced amperage
- Double shield ball bearings prelubricated with Exxon Polyrex em lubricant for extra long life and moisture resistance
Top product applications:
- Pressure washers
- Hot or cold pressure washer applications
- Single phase installations requiring minimum starting and running amperages
Pressure washer motor 2hp 1725rpm 56h frame drip-proof (dp) 115/208-230v 1ph continuous duty manual thermal protection 1.15 service factor rigid c mount. Pmotors specially suited for hot or cold pressure washer applications and other single phase installations requiring minimum starting and running amperages. Capacitor start capacitor run construction for reduced amperage. Double shield ball bearings prelubricated with exxon polyrex® em lubricant having operating temperature range of -20°f to +350°f and special formulation to provide extra long life and moisture resistance. Dynamically balanced rotor and shaft assembly. High efficiency reduced amperage energy saving designs. Stator impregnated with extra heavy varnish system. High temperature copper magnet wire for high overload capacity. Grounding provision in conduit box. Manual reset overload protector protects against automatic resets. High overload capacities provided by service factor./p
Additional Information
- UPC: 691720011904
- UNSPSC: 26101111
- Brand: Leeson Electric
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: PA
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 14.63
- Package Width: 11.25
- Package Height: 10.50
- Package Weight: 48.00
Product info last updated on May 19, 2025 3:13am UTC
Category: Definite Purpose Electric Motors
