BrakeMotor, 1-1/2hp, 1750RPM, 230/460VAC MPN:122252.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G907353909

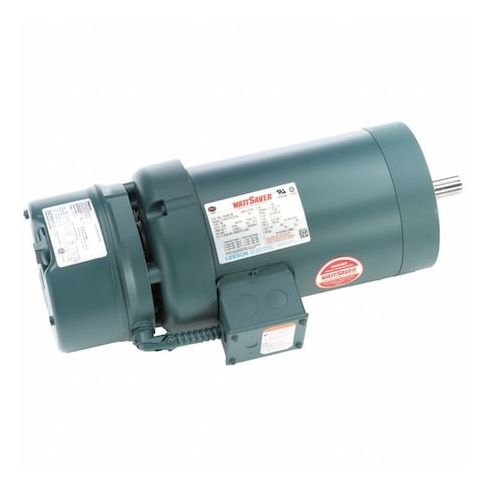

BrakeMotor, 1-1/2hp, 1750RPM, 230/460VAC
The Leeson BrakeMotor is a reliable and efficient solution for applications requiring precise control and braking. With a 1-1/2 hp rating and 1750 RPM, this three-phase motor is suitable for a variety of uses, including conveyor systems, elevator applications, and process control. Its continuous duty cycle and totally enclosed air-over design ensure optimal performance in harsh environments. The motor's 1.15 service factor and thermal protection features provide added reliability and protection against overheating. Ideal for industrial settings, this motor offers a cost-effective solution for applications requiring precise control and braking.
Top product features:
- Totally Enclosed Air-Over motor enclosure design provides protection from dust and debris.
- Motor shaft rotation is available in both clockwise and counterclockwise directions.
- 145TC frame design allows for easy mounting and installation.
Top product applications:
- Industrial conveyor systems
- Material handling equipment
- Manufacturing machinery
Brake Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, 4.6-4.8/2.4 A Full Load Amps, 145TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type C-Face
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.20
- Package Width: 11.50
- Package Height: 11.20
- Package Weight: 51.30
Product info last updated on February 21, 2026 1:07pm UTC
Category: Motors
