Brake Motor, 1hp, 1725 RPM, 115/208-230V AC MPN:111951.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G902577980

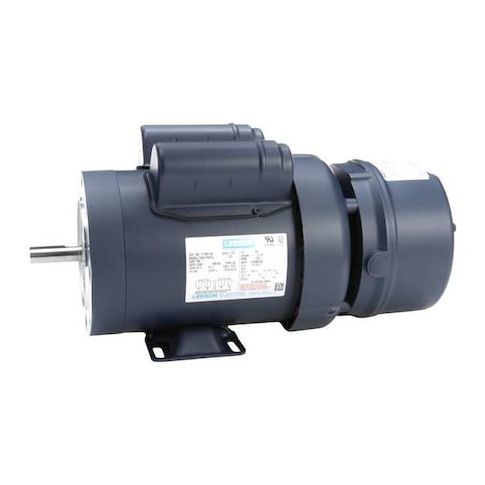

Brake Motor, 1hp, 1725 RPM, 115/208-230V AC
The Leeson 1hp brake motor is a reliable and efficient solution for various industrial applications. Suitable for continuous duty, this single-phase motor operates at 1725 RPM and can be used at 115/208-230V AC. Its capacitor-start design ensures optimal performance and efficiency. The motor is encased in a totally enclosed fan-cooled housing, protecting it from harsh environments. With its rigid base and CW/CCW shaft rotation, it can be easily integrated into a wide range of machinery, including conveyor belts, elevators, and packaging systems. Its compact size and durable construction make it an ideal choice for various industries, including manufacturing and logistics.
Top product features:
- Totally Enclosed Fan Cooled design for efficient heat dissipation
- Single Phase motor design with Capacitor-Start for reliable operation
- Continuous Duty Cycle capability for consistent performance under load
Top product applications:
- Pumps and water treatment systems
- Conveyor systems and material handling equipment
- Fans and blowers for industrial ventilation
Brake Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 5.6 A Full Load Amps, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.70
- Package Width: 10.80
- Package Height: 11.70
- Package Weight: 37.60
Product info last updated on February 2, 2026 3:14am UTC
Category: Motors
