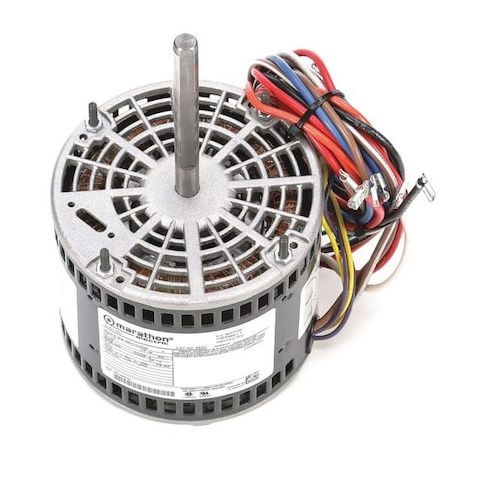

DDB Motor, PSC, OAO, 1/2 HP, 1-Ph, 1075 rpm MPN:048A11O1674
DDB Motor, PSC, OAO, 1/2 HP, 1-Ph, 1075 rpm
Boost efficiency and productivity with the Leeson DDB Motor, a reliable 1/2 HP single-phase fan and blower motor. Designed for continuous use, this motor operates at 1075 RPM and is suitable for a variety of applications, including HVAC, industrial ventilation, and commercial fans. Its permanent split capacitor design ensures smooth operation and long lifespan, while its compact 48Y frame makes it easy to install in tight spaces. With a maximum ambient temperature of 40°C and a service factor of 1, this motor is built to withstand demanding environments. Order yours today and experience the power and reliability of Leeson.
Top product features:
- Permanent Split Capacitor motor design
- Single Phase operation
- Continuous duty cycle
Top product applications:
- HVAC System Fans
- Industrial Ventilation Systems
- Commercial Air Conditioning Units
Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 4, Voltage 115V AC, 6.1 A Full Load Amps, 48Y Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.25
- Package Width: 7.00
- Package Height: 6.94
- Package Weight: 15.00
Product info last updated on February 22, 2026 10:26pm UTC
Category: Motors
