Hazardous Location Motor, 1 HP, 3.3/1.6A MPN:056T17G15599

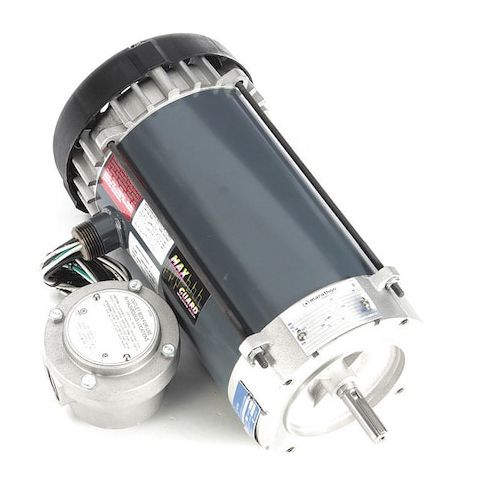

Hazardous Location Motor, 1 HP, 3.3/1.6A
The Leeson Hazardous Location Motor is a reliable and efficient solution for applications in explosive or flammable environments. This 1 HP, three-phase motor is designed to operate in hazardous locations, Class I and Class II, with a temperature code of T3B. Its totally enclosed fan cooled design ensures safe and reliable operation, even in harsh conditions. With a continuous duty cycle and a service factor of 1, this motor is ideal for applications such as oil and gas refineries, chemical plants, and other industries where safety and efficiency are paramount. Its compact size and weight make it easy to integrate into existing systems.
Top product features:
- Totally Enclosed Fan Cooled design provides improved cooling and reduced maintenance.
- Three Phase motor design allows for efficient power distribution and reduced energy consumption.
- 56C Frame provides a compact and durable motor housing.
Top product applications:
- Oil and Gas Industry
- Marine Vessels
- Chemical Plants
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 3.2/1.6 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.31
- Package Width: 11.19
- Package Height: 9.75
- Package Weight: 44.00
Product info last updated on March 13, 2026 3:12pm UTC
Category: Motors
