Hazardous Location Motor, 1 HP, 3.3/1.6A MPN:056T17G15600

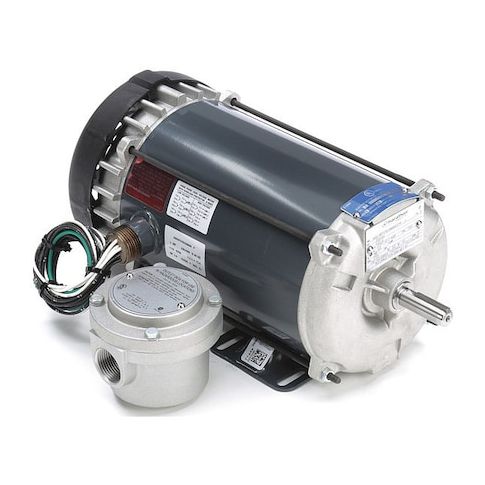

Hazardous Location Motor, 1 HP, 3.3/1.6A
This 1 HP hazardous location motor from Leeson is designed for use in areas where flammable gases or dust are present, meeting Class I, Class II, and T3B temperature code requirements. With a three-phase design and totally enclosed fan cooled enclosure, it operates at 1,725 RPM and 3.2/1.6 A current, suitable for continuous duty cycles. The motor is compatible with 230V and 460V AC voltages, making it versatile for various applications in industries such as oil and gas, chemical processing, and pharmaceuticals. Its compact size and reliable performance make it an ideal choice for hazardous locations.
Top product features:
- Three-phase motor design
- Totally enclosed fan cooled motor enclosure
- Continuously usable under 60 Hz operating conditions
Top product applications:
- Pump for chemical plants or refineries in a hazardous location
- Compressor for oil and gas operations in a hazardous location
- Conveyor system for mining applications in a hazardous location
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 3.2/1.6 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 10.88
- Package Height: 9.75
- Package Weight: 67.00
Product info last updated on February 27, 2026 9:01am UTC
Category: Motors
