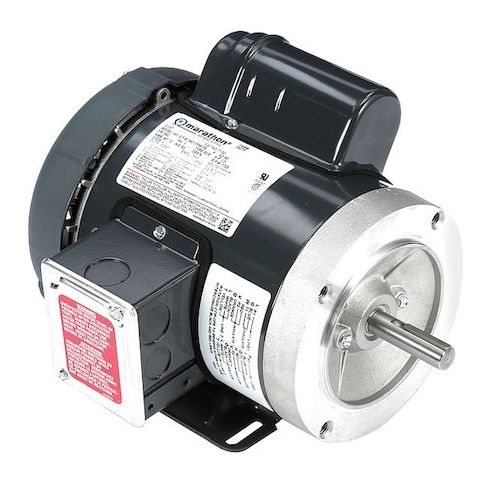

Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:056C17F5912
Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56C Frame
This 1/2 hp capacitor-start motor from Leeson is a reliable choice for farm duty applications, designed to withstand the demands of continuous use. Its single-phase design and 115/208-230V AC voltage rating make it suitable for a wide range of settings, from small farms to light industrial use. With a nameplate RPM of 1,725 and a motor service factor of 1.15, this motor delivers efficient performance and long lifespan. Its totally enclosed fan-cooled design and rigid base mounting type ensure durability and easy installation, making it an ideal solution for applications requiring reliable motor power.
Top product features:
- Totally Enclosed Fan Cooled design provides improved motor protection and efficiency
- Motor Shaft Rotation is CCWSE, allowing for efficient mounting and integration with existing equipment
- Manual thermal protection allows for user control and monitoring of motor temperature
Top product applications:
- Pumps
- Fans
- Conveyors
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 8.8/4.2-4.4 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.12
- Package Width: 10.25
- Package Height: 9.12
- Package Weight: 25.00
Product info last updated on March 8, 2026 4:25am UTC
Category: Motors
