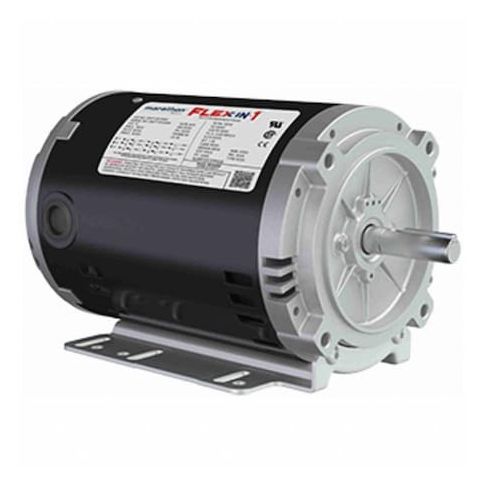

Three-Phase General Purpose Motor, 1 1/2 HP, 56HC Frame, 230/460V Voltage, 1, 725 Nameplate RPM MPN:056T17D15850

The LEESON - 056T17D15850 is a General Purpose Motor, which falls under the category of 3-Phase AC Motors. This motor is designed to convert electrical energy into mechanical energy and is widely used in various industrial and commercial settings for power transmission and pneumatics applications. Its versatile nature allows it to be utilized across different sectors including manufacturing lines and HVAC systems.

Key Features of the LEESON - 056T17D15850 General Purpose Motor:

• Duty Cycle: The motor is rated for continuous duty cycles under specified conditions.
• Frame: The frame size of this motor is 56HC, conforming to standard specifications for compatibility and interchangeability.
• Full Load Amps: The maximum current draw at full capacity is 4.4/2.2 A, crucial for determining power supply requirements.
• Horsepower (HP): With an HP rating of 1 1/2, this motor is suitable for use in various industrial applications as per the manufacturer's specifications.
• Inverter Rated: Yes - This indicates compatibility with variable frequency drives as per manufacturer's guidelines. Actual control over speed and torque may vary based on usage and setup.
• Max Ambient Temp.: Rated for operation at temperatures up to 40 Degrees C. Performance may vary depending on operating conditions.
• NEMA Design: Conforms to NEMA Design B classification system ensuring consistent performance across various industrial applications
