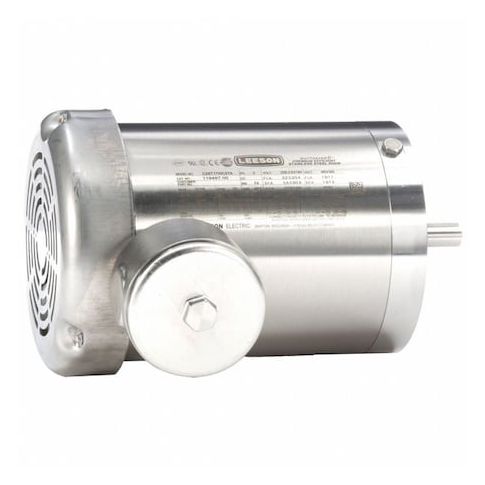

Three-Phase Washdown Motor, 1 hp HP, 56C Frame, 230/460V AC Voltage, 1, 725 RPM Nameplate RPM MPN:119497.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G807353894
Three-Phase Washdown Motor, 1 hp HP, 56C Frame, 230/460V AC Voltage, 1, 725 RPM Nameplate RPM
This three-phase washdown motor is designed for harsh environments, featuring a totally enclosed air-over design and a 56C frame to withstand extreme temperatures and cleaning agents. With a high service factor of 1.15, it can operate continuously in demanding applications. Suitable for use in food processing, pharmaceutical, and other industries where cleanliness is critical, this motor provides reliable performance and long-lasting durability. Its compact size and low amp draw make it an ideal choice for space-constrained installations, and its 1.725 RPM nameplate speed ensures efficient operation in a variety of applications.
Top product features:
- Three-phase design for efficient power distribution
- Totally enclosed air-over motor enclosure for protection from dust and moisture
- Continuous duty cycle for reliable operation in demanding environments
Top product applications:
- Food Processing Equipment
- Sanitary Equipment
- Pharmaceutical Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.2/1.6 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type C-Face
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.30
- Package Width: 13.70
- Package Height: 14.00
- Package Weight: 43.30
Product info last updated on February 15, 2026 8:21pm UTC
Category: Motors
