WashdownMotor, 10hp, 3525RPM, 230/460VAC MPN:141271.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G806626654

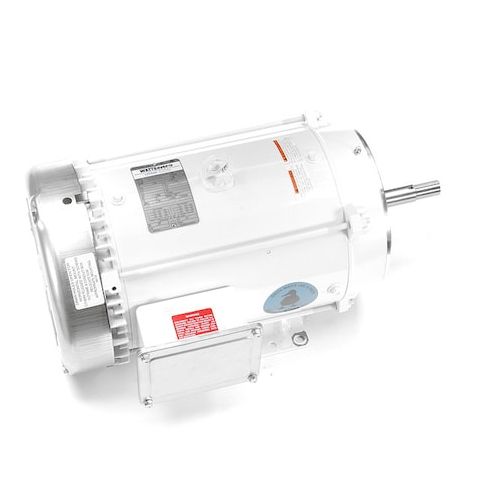

WashdownMotor, 10hp, 3525RPM, 230/460VAC
This 10hp washdown motor from Marathon is designed for use in harsh environments where high pressure washing and cleaning are necessary. Its three-phase design and totally enclosed fan-cooled enclosure ensure efficient operation and long lifespan. The motor's 3,525 RPM and 23.6/11.8 amp rating make it suitable for a variety of applications, including food processing, pharmaceutical manufacturing, and chemical plants. Its continuous duty cycle and NEMA Design B rating make it a reliable choice for demanding environments. The motor's compact size and easy maintenance design make it an ideal solution for space-constrained facilities.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and clean environment for the motor
- Three-Phase motor design allows for efficient and reliable operation
- Continuous Duty Cycle capability enables the motor to operate for extended periods without failure
Top product applications:
- Food Processing
- Pulp and Paper Mill
- Chemical Processing
Washdown Motor, Three Phase, Motor Design Three-Phase, 10 hp HP, Nameplate RPM 3,525 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 23.6/11.8 A, 215JM Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.20
- Package Width: 27.40
- Package Height: 19.20
- Package Weight: 91.00
Product info last updated on February 2, 2026 4:04am UTC
Category: Motors
