Capacitor-Start General Purpose Motor, 1/4 hp HP, 115/230V AC Voltage, 56C Frame MPN:5KC32GN25
Capacitor-Start General Purpose Motor, 1/4 hp HP, 115/230V AC Voltage, 56C Frame

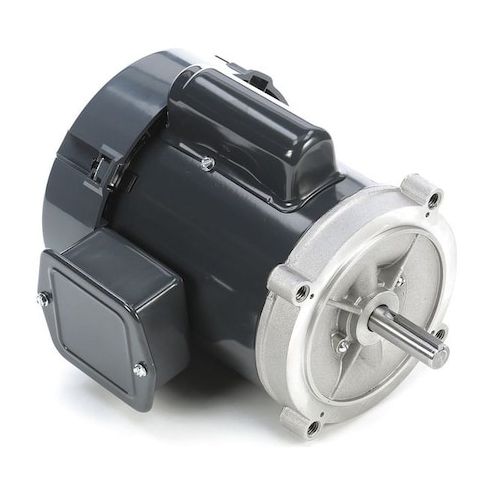

This 1/4 hp Capacitor-Start General Purpose Motor from Leeson is a reliable and efficient solution for various applications. Suitable for use in a single-phase system, it operates at 115/230V AC voltage and has a nameplate RPM of 1,725 RPM. With a continuous duty cycle and no thermal protection, it's ideal for applications that require consistent operation. The motor's totally enclosed fan-cooled design ensures optimal performance in a wide range of environments. Perfect for use in industrial settings, such as conveyor systems, pumps, and fans, this motor provides a cost-effective and durable solution for various general purpose applications.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reduced maintenance
- Single Phase motor design for simple and efficient operation
- Continuous Duty Cycle for reliable and long-lasting performance
Top product applications:
- Pumps
- Fans
- Air Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.4/2.7 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.44
- Package Width: 10.19
- Package Height: 9.50
- Package Weight: 16.00
Product info last updated on February 24, 2026 6:47am UTC
Category: Motors
