Three-Phase General Purpose Motor, 1 1/2 HP, 145T Frame, 230/460V AC Voltage, 1755 rpm Nameplate RPM MPN:145TTDR6126
Three-Phase General Purpose Motor, 1 1/2 HP, 145T Frame, 230/460V AC Voltage, 1755 rpm Nameplate RPM

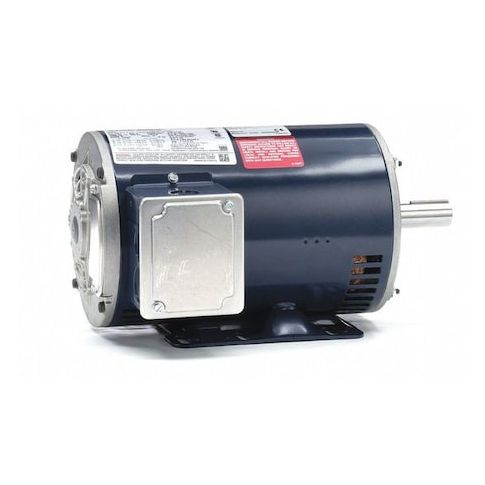

This Leeson 1 1/2 HP Three-Phase General Purpose Motor is designed for a wide range of industrial applications, including manufacturing, pumping, and material handling. Its robust construction and reliable performance make it an ideal choice for continuous duty operations. The motor's open drip-proof enclosure and rigid base mounting ensure efficient heat dissipation and stable operation, while its ball bearings and steel frame provide a long service life. With a high efficiency rating of 86.5% and a service factor of 1.15, this motor is perfect for applications where high performance and reliability are critical, such as in food processing, chemical plants, and other heavy industries.
Top product features:
- Three-phase operation for efficient power distribution
- Open drip-proof motor enclosure design for protection against dust and water spray
- Ball motor bearings for smooth and durable rotation
Top product applications:
- Industrial automation systems
- Pumps and water treatment systems
- Textile manufacturing machinery
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1755 rpm, Frame 145T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 4.4/2.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.82
- Package Width: 12.56
- Package Height: 9.38
- Package Weight: 46.00
Product info last updated on January 23, 2026 8:26am UTC
Category: Motors
