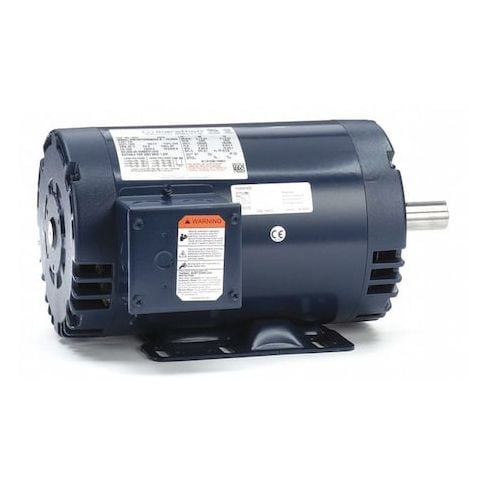

Three-Phase General Purpose Motor, 3 HP, 145T Frame, 230/460V AC Voltage, 3500 rpm Nameplate RPM MPN:145TTDR6002
Three-Phase General Purpose Motor, 3 HP, 145T Frame, 230/460V AC Voltage, 3500 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3 HP, Nameplate RPM 3500 rpm, Frame 145T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 7.2/3.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection T-Stat, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 3001-3600, CE, CSA, UL Recognized
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 10.44
- Package Height: 10.88
- Package Weight: 46.00
Product info last updated on February 18, 2026 11:25pm UTC
Category: Motors
