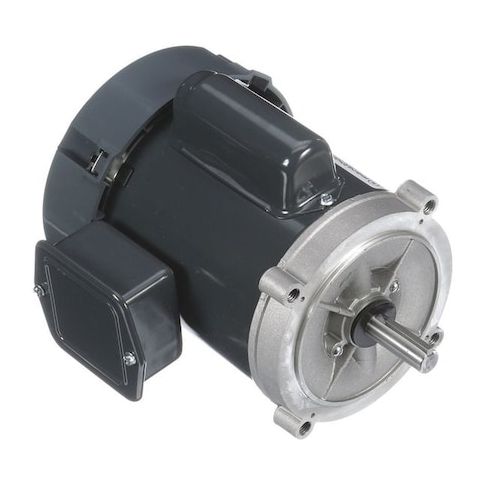

Capacitor-Start General Purpose Motor, 1/3 hp HP, 56C Frame, 115/230V AC Voltage MPN:5KC33FN31
Capacitor-Start General Purpose Motor, 1/3 hp HP, 56C Frame, 115/230V AC Voltage
This 1/3 hp capacitor-start general purpose motor from Leeson is a reliable and efficient solution for a wide range of applications. Suitable for use in 115/230V AC environments, it features a 56C frame and operates at 3,450 RPM, making it ideal for light to medium-duty tasks. With a continuous duty cycle and 1.15 service factor, this motor can handle demanding applications. Its totally enclosed fan-cooled design and Class B insulation ensure a long lifespan and minimize maintenance. Perfect for use in commercial and industrial settings, this motor is a versatile and cost-effective option for various applications, including pumps, fans, and conveyor systems.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor performance and reliability
- Single Phase, Motor Design Capacitor-Start for efficient and cost-effective operation
- Continuous duty cycle capability for uninterrupted power delivery
Top product applications:
- Pumps and well systems
- Fans and blowers
- Conveyors and material handling systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.6/2.8 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.69
- Package Width: 7.13
- Package Height: 7.50
- Package Weight: 14.00
Product info last updated on February 8, 2026 5:18pm UTC
Category: Motors
