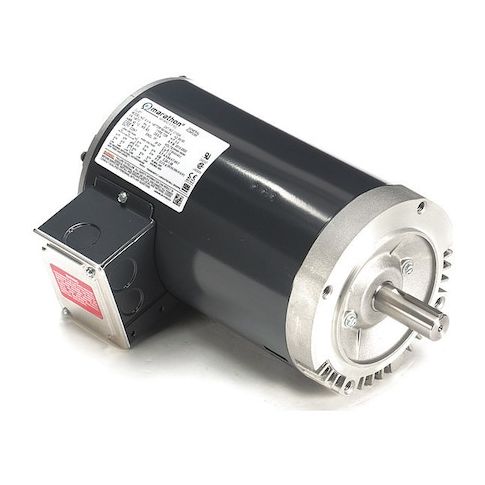

Three-Phase General Purpose Motor, 3 HP, 145TC Frame, 230/460V AC Voltage, 3510 rpm Nameplate RPM MPN:145TTDR16319
Three-Phase General Purpose Motor, 3 HP, 145TC Frame, 230/460V AC Voltage, 3510 rpm Nameplate RPM
This three-phase general purpose motor is designed for a wide range of applications requiring high efficiency and reliability. Suitable for use in industrial settings, it provides continuous duty operation at 3510 rpm, making it ideal for applications such as pumps, fans, and conveyor systems. With a nameplate efficiency of 87.5%, it helps reduce energy costs and minimize environmental impact. The motor's open drip-proof enclosure design and steel frame ensure durability and long lifespan. Available in a 145TC frame size, it can be easily integrated into existing systems, offering a reliable and cost-effective solution for various industrial applications.
Top product features:
- Three-phase operation allows for efficient power distribution and motor performance.
- Open drip-proof motor enclosure design provides protection from dust and moisture.
- Ball bearings enable smooth and quiet motor operation.
Top product applications:
- Industrial conveyor systems
- Pumping stations
- Industrial fans and blowers
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3 HP, Nameplate RPM 3510 rpm, Frame 145TC, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 7.6/3.8 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 87.5 Percent, Continuous Duty, 3001-3600, CE, CSA, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.38
- Package Width: 10.50
- Package Height: 8.62
- Package Weight: 58.00
Product info last updated on February 3, 2026 8:45am UTC
Category: Motors
