Three-Phase Severe Duty Motor, 2 HP, 145T Frame, 460V AC Voltage, 1740 rpm Nameplate RPM MPN:145TTTN16629
Three-Phase Severe Duty Motor, 2 HP, 145T Frame, 460V AC Voltage, 1740 rpm Nameplate RPM

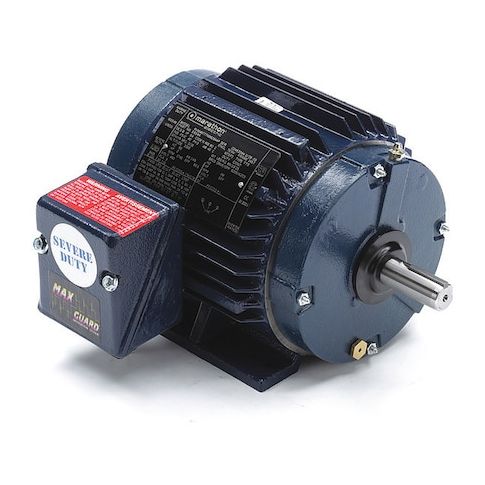

The Leeson 2 HP Three-Phase Severe Duty Motor is designed for heavy-duty applications that require reliable and efficient performance. Suitable for use in industrial settings, such as manufacturing and processing facilities, this motor features a totally enclosed non-ventilated design to protect against harsh environments. Its rigid base mounting type and ball bearings ensure smooth operation and extended lifespan. With a high efficiency rating of 86.5% and a service factor of 1.15, this motor is ideal for continuous duty applications, including conveyor systems, pumps, and compressors. Its compact size and durable construction make it a valuable addition to any industrial operation.
Top product features:
- Three-Phase Operation
- Totally Enclosed Non-Ventilated Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Industrial textile manufacturing
- Pulp and paper mills
- Chemical processing plants
Severe Duty Motor, Three-Phase, Totally Enclosed Non-Ventilated Motor Enclosure Design, 2 HP, Nameplate RPM 1740 rpm, Frame 145T, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 12.25
- Package Height: 9.38
- Package Weight: 65.00
Product info last updated on February 10, 2026 11:48pm UTC
Category: Motors
