Three-Phase Severe Duty Motor, 2 HP, 145T Frame, 230/460V AC Voltage, 1740 rpm Nameplate RPM MPN:145TTTN16628

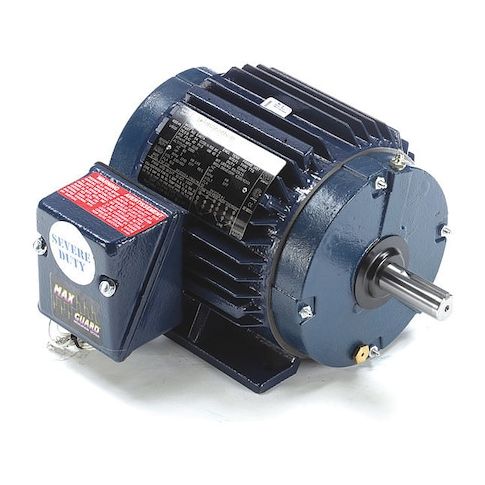

Three-Phase Severe Duty Motor, 2 HP, 145T Frame, 230/460V AC Voltage, 1740 rpm Nameplate RPM
This Leeson Three-Phase Severe Duty Motor is designed for heavy-duty applications requiring continuous operation. Built with a totally enclosed non-ventilated motor enclosure and rigid base mounting, it provides reliable performance in harsh environments. The motor's 1.15 service factor and ball bearings ensure extended lifespan and reduced maintenance. With a maximum ambient temperature of 40°C and CW/CCW rotation, it can be used in a variety of applications, including manufacturing, pumping, and conveyor systems. Its high efficiency and continuous duty rating make it an ideal choice for demanding industrial settings.
Top product features:
- Three-phase design for efficient operation in heavy-duty applications
- Totally Enclosed Non-Ventilated Motor Enclosure for protection from environmental factors
- Ball Motor Bearings for smooth and long-lasting operation
Top product applications:
- Manufacturing plants use these motors for power transmission and material handling equipment.
- Textile mills often employ severe duty motors like this one for machinery such as spinning frames and looms.
- Pulp and paper mills utilize these motors for driving equipment such as conveyor belts, pumps, and fans.
Severe Duty Motor, Three-Phase, Totally Enclosed Non-Ventilated Motor Enclosure Design, 2 HP, Nameplate RPM 1740 rpm, Frame 145T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 6.0/3.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 12.25
- Package Height: 9.38
- Package Weight: 65.00
Product info last updated on February 14, 2026 8:27pm UTC
Category: Motors
