Hazardous Location Motor, 1-1/2 HP MPN:145TTGN16036
Hazardous Location Motor, 1-1/2 HP

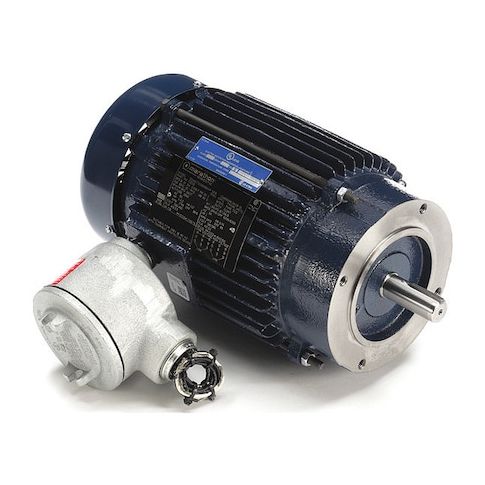

This Leeson hazardous location motor is designed for use in areas where flammable gases or dusts are present, meeting Class I, Class II, and Temp. Code T3B standards. It's a reliable and efficient solution for applications such as oil and gas refineries, chemical plants, and other industries with hazardous environments. With a 1.5 HP rating and 1,755 RPM, it provides a high level of performance and durability. The motor's totally enclosed fan-cooled design and thermal protection ensure safe and reliable operation in extreme temperatures, making it ideal for use in environments up to 40°C.
Top product features:
- Three-phase design
- Totally enclosed fan cooled enclosure
- Thermal protection with T-Stat
Top product applications:
- Chemical Processing
- Oil and Gas Industry
- Power Generation and Distribution
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,755 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 4.6/2.3 A, 145TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 60 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.19
- Package Width: 16.50
- Package Height: 14.00
- Package Weight: 87.00
Product info last updated on March 2, 2026 5:40am UTC
Category: Motors
