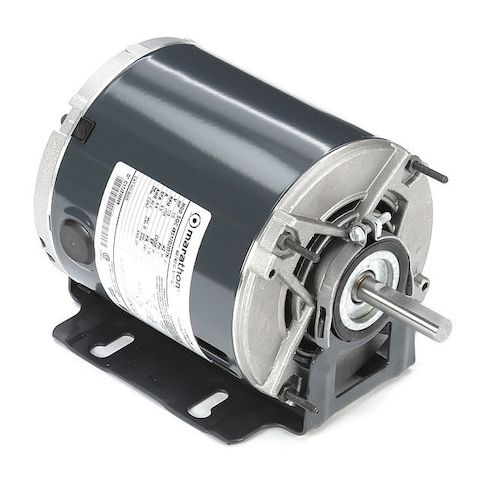

Condenser Fan Motor, 1/3 HP, 48Y Frame MPN:048S17D2057
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7344421
Condenser Fan Motor, 1/3 HP, 48Y Frame
This 1/3 HP condenser fan motor from Leeson is a reliable and efficient solution for a variety of applications, including residential and commercial HVAC systems, industrial ventilation, and more. With a 48Y frame and a single-phase, split-phase design, this motor provides smooth and quiet operation. Its 1,725 RPM speed and 115V AC voltage make it suitable for a range of uses. The motor's open drip-proof enclosure and cradle base mounting type ensure easy installation and maintenance. With a continuous duty cycle and thermal protection, this motor provides reliable performance in demanding environments. Ideal for new installations or replacements.
Top product features:
- Operates at 1,725 RPM
- Has a split-phase motor design
- Features a cradle base motor mounting type
Top product applications:
- HVAC systems
- Air conditioning units
- Industrial fans
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 5.5 A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.50
- Package Width: 7.00
- Package Height: 8.00
- Package Weight: 15.00
Product info last updated on February 23, 2026 11:08am UTC
Category: Motors
