Condenser Fan Motor, 1 hp MPN:056T8O5302
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7343828

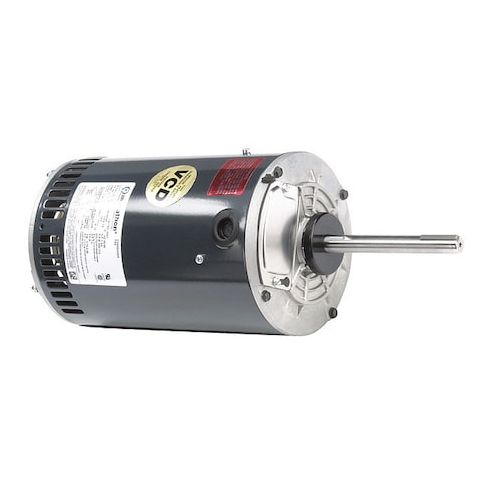

Condenser Fan Motor, 1 hp
This 1 hp condenser fan motor from Leeson is a reliable and efficient solution for various applications. Suitable for use in three-phase systems, it operates at 850 RPM and is designed for continuous duty cycles. The motor's compact 56Y frame makes it easy to integrate into existing systems. Its high output of 750 watts and durable design ensure optimal performance in a range of environments. Ideal for use in commercial and industrial settings, this motor is perfect for applications such as air conditioning units, condensers, and other HVAC equipment. Its long lifespan and low maintenance requirements make it a cost-effective choice.
Top product features:
- Three Phase Operation
- Continuous Duty Cycle
- 56Y Frame Design
Top product applications:
- Air Conditioning System
- HVAC Unit
- Packaged Rooftop Unit
Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 5.3-5.3/2.7 A Full Load Amps, 56Y Frame, Output Watts 750 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class H, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.88
- Package Width: 10.25
- Package Height: 8.12
- Package Weight: 46.00
