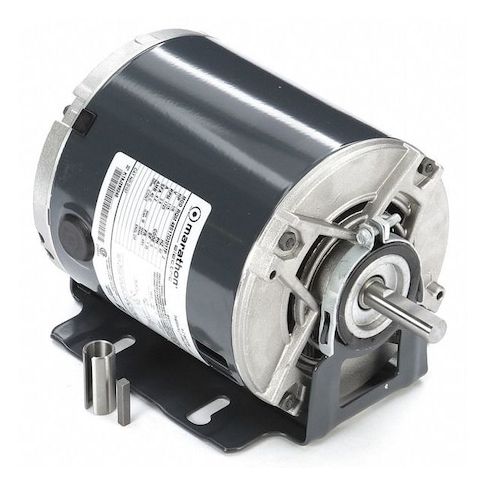

Condenser Fan Motor, 1/6 HP, 48 Frame MPN:048S17D2017
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7343161
Condenser Fan Motor, 1/6 HP, 48 Frame
This 1/6 HP condenser fan motor from Leeson is a reliable and efficient solution for a variety of applications. Suitable for continuous duty cycles, it operates at 1,725 RPM and is designed for use in single-phase systems. The motor's 48 frame size and open drip-proof enclosure make it easy to install and maintain. With a service factor of 1.35 and thermal protection, this motor provides reliable performance in temperatures up to 40 degrees C. Ideal for use in condensers, air handlers, and other HVAC equipment, this motor is a cost-effective and efficient choice for commercial and industrial applications.
Top product features:
- Single Phase operation
- Split-Phase motor design
- Continuous duty cycle
Top product applications:
- Air Conditioning Units
- HVAC Systems
- Industrial Fans
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/6 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 3.6 A Full Load Amps, 48 Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.06
- Package Width: 6.75
- Package Height: 6.62
- Package Weight: 12.00
Product info last updated on May 5, 2026 1:17am UTC
Category: Motors
