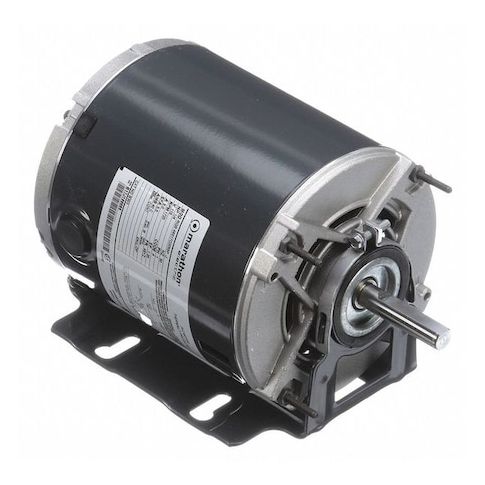

Condenser Fan Motor, 1/4 HP, 48Y Frame MPN:048S17D2055
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7342717
Condenser Fan Motor, 1/4 HP, 48Y Frame
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 5.0 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.06
- Package Width: 6.75
- Package Height: 6.62
- Package Weight: 14.00
Product info last updated on February 23, 2026 4:07pm UTC
Category: Motors
