Condenser Fan Motor, 2 HP, 56Y Frame MPN:056T11O5304
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7263538

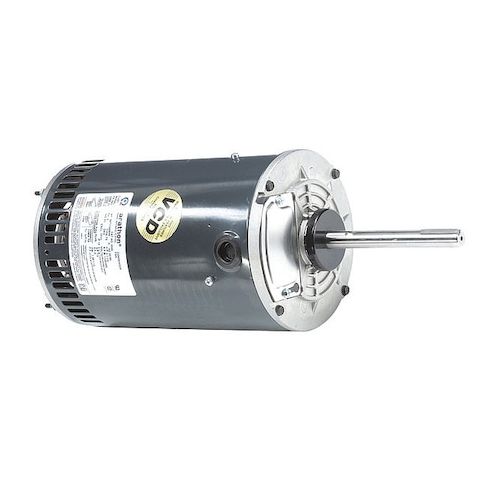

Condenser Fan Motor, 2 HP, 56Y Frame
This Leeson condenser fan motor is a reliable and efficient solution for various applications, including commercial and industrial HVAC systems. With a 2 HP rating and 1,140 RPM, it provides consistent airflow and cooling performance. Its 56Y frame design and three-phase motor operation make it suitable for use in a wide range of environments. The motor's continuous duty cycle and auto thermal protection ensure reliable operation, while its compact design and open-air enclosure make it easy to install and maintain. Ideal for use in data centers, warehouses, and other high-temperature applications, this motor provides a cost-effective and efficient solution for cooling and ventilation needs.
Top product features:
- Three-phase operation
- Continuous duty cycle
- Thermal protection with auto shut-off
Top product applications:
- Air Conditioning Systems
- HVAC Units
- Packaged Rooftop Units
Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 7.2-6.8/3.4 A Full Load Amps, 56Y Frame, Output Watts 1500 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class H, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.88
- Package Width: 10.25
- Package Height: 8.12
- Package Weight: 46.00
Product info last updated on February 27, 2026 8:55am UTC
Category: Motors
