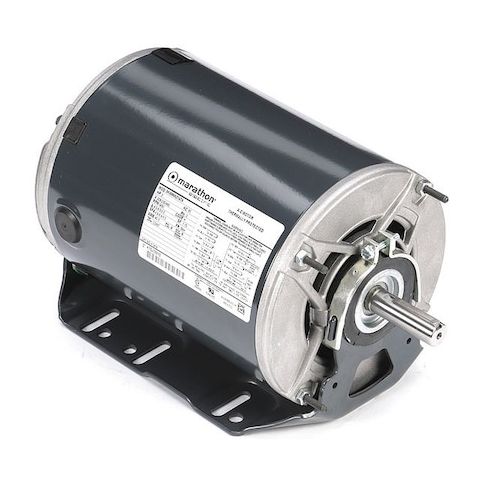

Condenser Fan Motor, 2 HP, 56H Frame MPN:5K49NN2147X
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7253939
Condenser Fan Motor, 2 HP, 56H Frame
This 2 HP condenser fan motor from Leeson is a reliable and efficient solution for various applications, including HVAC and industrial ventilation systems. Suitable for use in three-phase systems, it operates at 3,450 RPM and is designed for continuous duty cycles. The motor's open drip-proof enclosure and cradle base mounting type make it easy to install and maintain. With a service factor of 1.15 and a maximum ambient temperature of 40°C, it can handle demanding environments. Ideal for use in commercial and industrial settings, this motor is a cost-effective and reliable choice for applications that require high airflow.
Top product features:
- Three-phase operation
- Two horsepower output
- Open drip proof motor enclosure design
Top product applications:
- HVAC Systems
- Commercial Air Handling Units
- Industrial Ventilation Systems
Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 6.0-6.0/3.0 A Full Load Amps, 56H Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.69
- Package Width: 7.13
- Package Height: 7.50
- Package Weight: 30.00
Product info last updated on February 5, 2026 10:03am UTC
Category: Motors
