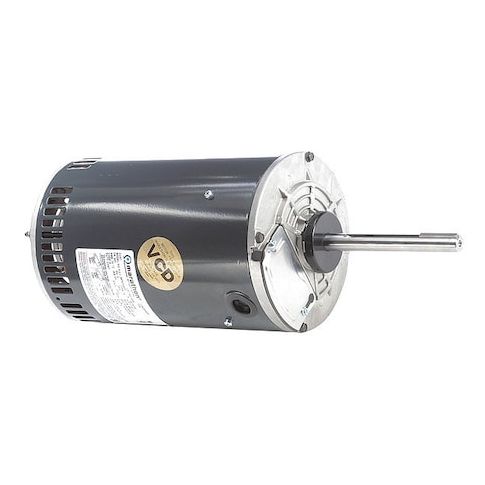

Condenser Fan Motor, 1 1/2 hp MPN:056T8O5307
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7249851
Condenser Fan Motor, 1 1/2 hp
This 1 1/2 hp three-phase condenser fan motor from Leeson is designed for heavy-duty use in commercial and industrial applications. Its high-speed operation at 850 RPM provides efficient cooling in condenser units, while its continuous duty cycle ensures reliable performance in demanding environments. The motor's open air design and belly band mounting make it easy to install and maintain. With a wide voltage range and high ampacity, this motor is suitable for a variety of applications, including HVAC systems, industrial cooling systems, and large commercial refrigeration units. Its compact size and lightweight design also make it easy to handle and transport.
Top product features:
- Three-phase design
- One and a half horsepower output
- Continuous duty cycle operation
Top product applications:
- HVAC Systems
- Packaged Air Conditioning Units
- Commercial Refrigeration Systems
Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 7.5-6.8/3.4 A Full Load Amps, 56Y Frame, Output Watts 1100 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class H, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.88
- Package Width: 10.25
- Package Height: 8.12
- Package Weight: 47.00
Product info last updated on February 3, 2026 5:07am UTC
Category: Motors
