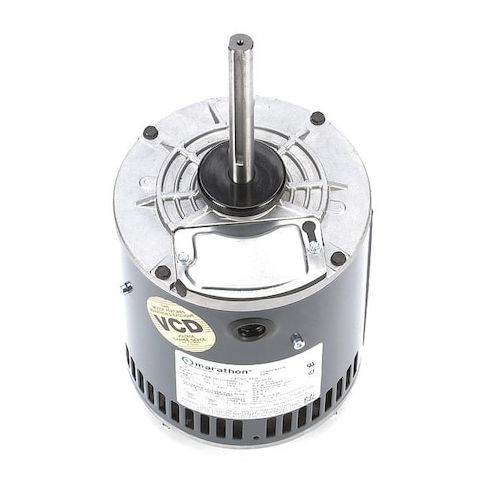

Condenser Fan Motor, 1/2 hp MPN:056T11O5300
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7249547
Condenser Fan Motor, 1/2 hp
This 1/2 hp three-phase condenser fan motor from Leeson is designed for heavy-duty applications, providing reliable performance in a wide range of environments. Suitable for use in 208V and 200V systems, it offers a continuous duty cycle and can withstand temperatures up to 70 degrees C. Its compact design and open air over motor enclosure make it easy to install and maintain. Ideal for use in commercial and industrial settings, such as HVAC systems, this motor is a reliable solution for applications that require efficient and quiet operation. Its durability and efficiency make it a valuable addition to any system.
Top product features:
- Three-phase design
- Operates at 1,140 RPM
- Continuous duty cycle
Top product applications:
- HVAC System
- Air Compressor
- Packaged Rooftop Unit
Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 2.4-2.7/1.4 A Full Load Amps, 56Y Frame, Output Watts 370 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.38
- Package Width: 10.50
- Package Height: 8.12
- Package Weight: 20.00
Product info last updated on February 7, 2026 4:21pm UTC
Category: Motors
