Washdown Motor, 1 HP, 56C Frame MPN:119512.00
Washdown Motor, 1 HP, 56C Frame

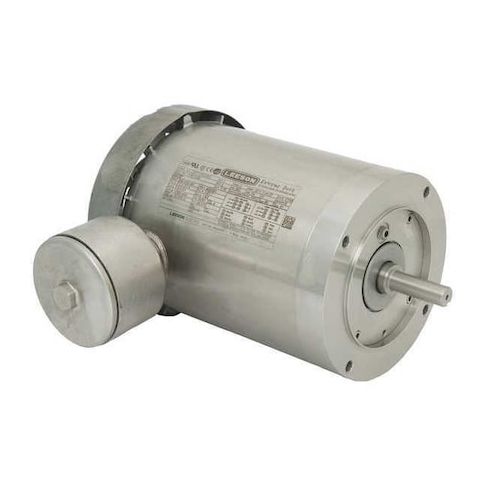

This 1 HP washdown motor from Leeson is designed for use in harsh environments, featuring a totally enclosed fan-cooled design that protects against dust, dirt, and water. With a 1,760 RPM nameplate speed and 3.2/1.6 amp full load current, this motor provides reliable power for a variety of applications, including food processing, pharmaceutical manufacturing, and chemical handling. Its continuous duty cycle and NEMA Design B rating ensure efficient operation in demanding conditions. With a compact 56C frame and CW/CCW rotation, this motor is ideal for applications where space is limited and flexibility is required.
Top product features:
- Three-phase motor design
- Totally enclosed fan-cooled motor enclosure
- Continuous duty cycle
Top product applications:
- Pumps
- Water treatment plants
- Chemical processing plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.2/1.6 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 14.20
- Package Height: 13.70
- Package Weight: 52.80
Product info last updated on February 16, 2026 4:16pm UTC
Category: Motors
