WashdownMotor, 2hp, 1745RPM, 56C, 230/460VAC MPN:119524.00
WashdownMotor, 2hp, 1745RPM, 56C, 230/460VAC

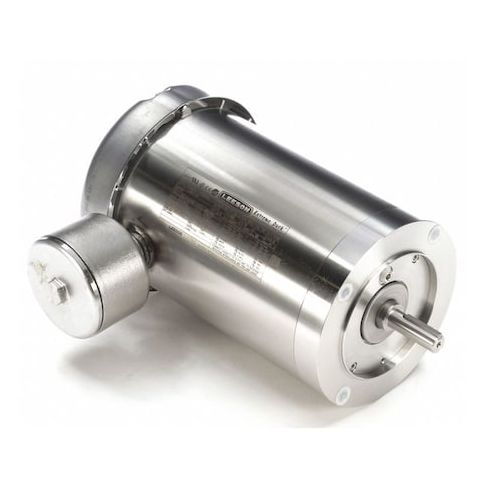

This 2 HP, 56C frame washdown motor from Leeson is designed for heavy-duty use in harsh environments. Suitable for three-phase applications, it operates at 1,745 RPM and can handle continuous duty cycles. The motor's totally enclosed fan-cooled design and Class F insulation ensure reliable performance and long lifespan. Ideal for use in food processing, pharmaceutical, and chemical industries, this motor provides efficient and safe operation in applications where cleanliness and sanitation are critical. Its compact size and NEMA Design B rating make it a versatile solution for various washdown applications.
Top product features:
- Three-phase operation
- Totally enclosed fan cooling
- Continuous duty cycle
Top product applications:
- Water Treatment Plants
- Food Processing Facilities
- Chemical Processing Plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.8/2.9 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.40
- Package Width: 13.70
- Package Height: 14.00
- Package Weight: 62.30
Product info last updated on February 2, 2026 9:59am UTC
Category: Motors
