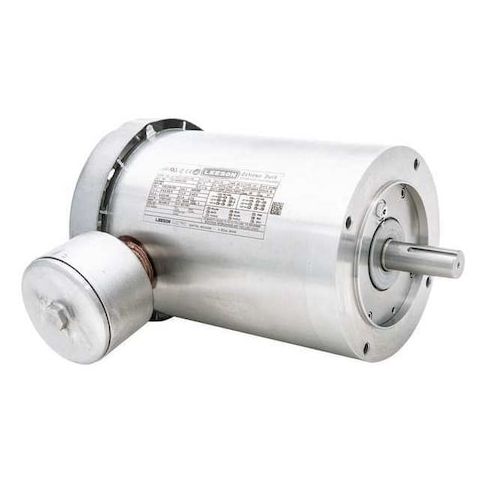

Washdown Motor, 1-1/2 HP, 143TC Frame MPN:121909.00
Washdown Motor, 1-1/2 HP, 143TC Frame
This 1.5 HP washdown motor from Leeson is designed for heavy-duty use in harsh environments. With a totally enclosed fan-cooled design and NEMA Design B rating, it provides reliable operation and protection from the elements. Suitable for applications such as food processing, pharmaceutical manufacturing, and chemical plants, this motor can withstand high temperatures and corrosive substances. Its three-phase design and continuous duty cycle make it an ideal choice for high-volume production and demanding processes. With a compact 143TC frame and CW/CCW rotation, it offers flexibility and convenience for installation and maintenance.
Top product features:
- Three Phase Design
- Totally Enclosed Fan Cooled Enclosure
- Continuous Duty Cycle
Top product applications:
- Food Processing Equipment
- Pump Stations
- Laundry and Cleaning Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.8/2.4 A, 143TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.60
- Package Width: 13.60
- Package Height: 13.70
- Package Weight: 58.70
Product info last updated on February 15, 2026 7:18pm UTC
Category: Motors
