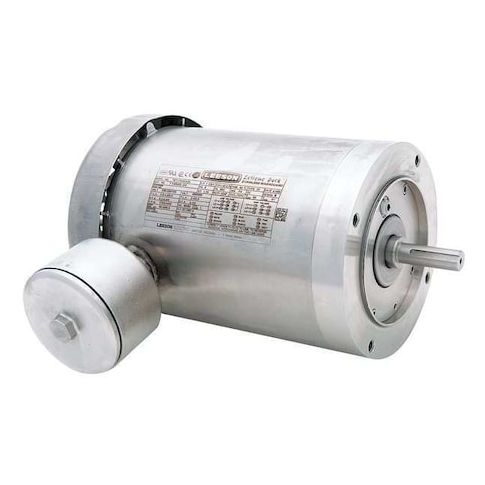

Washdown Motor, 1-1/2 HP, 143TC Frame MPN:119520.00
Washdown Motor, 1-1/2 HP, 143TC Frame
The Leeson Washdown Motor is a rugged and reliable solution for demanding applications. Its 1-1/2 HP, 3-phase design provides continuous operation at 1,750 RPM, making it ideal for high-usage environments. With a totally enclosed fan-cooled design and NEMA Design B certification, this motor can withstand harsh conditions and extreme temperatures. Suitable for use in washdown areas, food processing, and other high-humidity environments, the Leeson Washdown Motor offers a high level of protection against corrosion and moisture. Its compact design and easy mounting make it a versatile choice for a wide range of applications.
Top product features:
- Totally Enclosed Fan Cooled design for improved reliability and reduced maintenance
- Continuous duty cycle for uninterrupted operation
- Three-Phase motor design for efficient power management
Top product applications:
- Food Processing
- Pumps and Water Treatment Plants
- Chemical Plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.8/2.4 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.60
- Package Width: 13.70
- Package Height: 14.00
- Package Weight: 57.00
Product info last updated on February 28, 2026 9:52am UTC
Category: Motors
