Washdown Motor, 1 HP, 143JM Frame MPN:119475.00

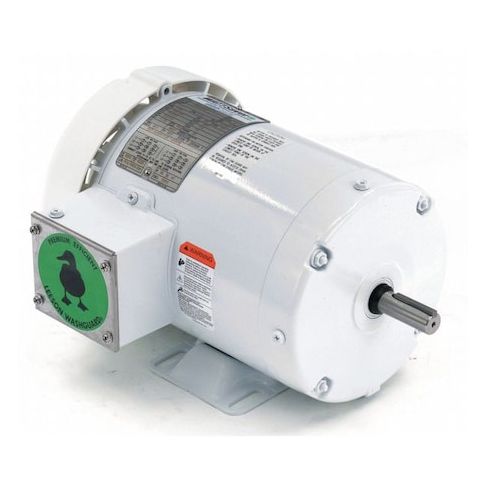

Washdown Motor, 1 HP, 143JM Frame
This 1 HP, 143JM frame washdown motor from Leeson is designed for use in harsh environments, with a totally enclosed fan-cooled design and a maximum ambient temperature of 40°C. Suitable for continuous duty cycles, it's perfect for applications such as food processing, pharmaceutical manufacturing, and chemical plants. With a three-phase design and a wide range of voltage options, including 208V, it's versatile and adaptable to various systems. Its durable construction and high service factor ensure reliable operation, making it an ideal choice for heavy-duty washdown applications where performance and reliability are crucial.
Top product features:
- Three-phase design
- Totally enclosed fan cooled motor enclosure
- Continuous duty cycle
Top product applications:
- Washdown Motor suitable for use in food processing facilities where high sanitation standards are required.
- Three-phase motor design makes it suitable for use in industrial applications such as manufacturing and assembly lines.
- Totally enclosed fan-cooled design makes it suitable for use in harsh environments such as in outdoor construction sites.
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.2/1.6 A, 143JM Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.80
- Package Width: 11.20
- Package Height: 11.70
- Package Weight: 37.30
Product info last updated on March 3, 2026 8:39am UTC
Category: Motors
