Washdown Motor, 2 HP, 56C Frame MPN:119472.00

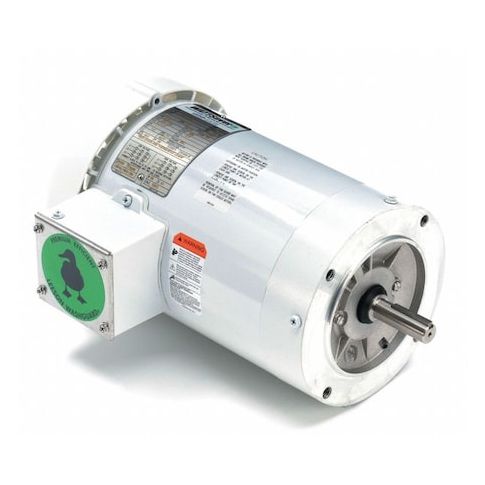

Washdown Motor, 2 HP, 56C Frame
This 2 HP washdown motor from Leeson is designed for harsh environments, featuring a totally enclosed fan-cooled enclosure and a NEMA Design B rating. It operates at 3,490 RPM and can handle continuous duty cycles, making it suitable for applications in food processing, pharmaceutical, and chemical industries. The motor's three-phase design and 230/460V AC voltage rating ensure efficient performance, while its 56C frame and Class F insulation ensure reliability. With a lead time of just one day, this motor is perfect for businesses that require quick turnaround on equipment replacements or expansions.
Top product features:
- Three-phase operation
- Totally enclosed fan cooled design
- Continuous duty cycle
Top product applications:
- Pumps and water treatment equipment
- Washing machines and industrial cleaning equipment
- Food processing and handling machinery
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 3,490 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.8/2.4 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.90
- Package Width: 11.00
- Package Height: 11.80
- Package Weight: 45.30
Product info last updated on February 5, 2026 1:22pm UTC
Category: Motors
