Sub-Fractional Motor, 1, 750 RPM, 1.8 A MPN:M1120042.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G707353901

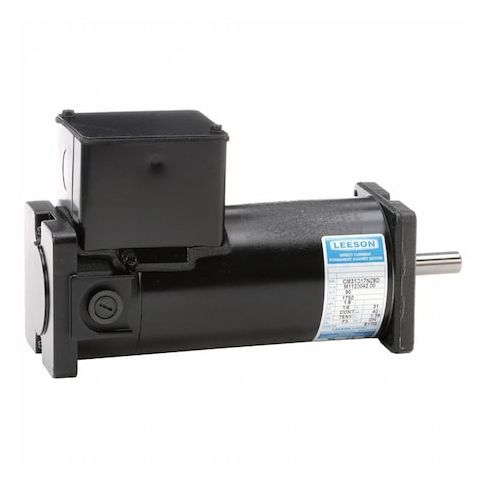

Sub-Fractional Motor, 1, 750 RPM, 1.8 A
This 1/6 HP sub-fractional motor from Leeson is designed for a wide range of applications, including medical equipment, laboratory instruments, and precision machinery. Its high torque output and low current draw make it ideal for use in high-precision applications where space is limited. The motor's compact size and totally enclosed air-over design provide excellent protection from dust and moisture, ensuring reliable operation in harsh environments. With a continuous duty cycle and CW/CCW shaft rotation, this motor is suitable for use in a variety of applications, including medical devices, laboratory equipment, and precision machinery.
Top product features:
- Provides 1/6 HP of power
- Operates at 1,750 RPM
- Features a totally enclosed air-over motor enclosure design
Top product applications:
- Pumps for aquariums and small water features
- Fans for small-scale industrial or commercial use
- Power tools for woodworking or metalworking applications
Sub-Fractional Motors, 1/6 HP, Nameplate RPM 1,750 RPM, Voltage 90V DC, 1.8 A Full Load Amps, 31 Frame, Full Load Torque 96 oz-in, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Square Flange, Shaft Dia. 1/2 in, Brush Type External, Overall Length 9 7/16 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.90
- Package Width: 7.90
- Package Height: 6.70
- Package Weight: 11.50
Product info last updated on April 3, 2026 8:11am UTC
Category: Motors
