Three-Phase Washdown Motor, 1 hp HP, 56HC Frame, 230/460V AC Voltage, 1, 760 RPM Nameplate RPM MPN:119490.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G707353895
Three-Phase Washdown Motor, 1 hp HP, 56HC Frame, 230/460V AC Voltage, 1, 760 RPM Nameplate RPM

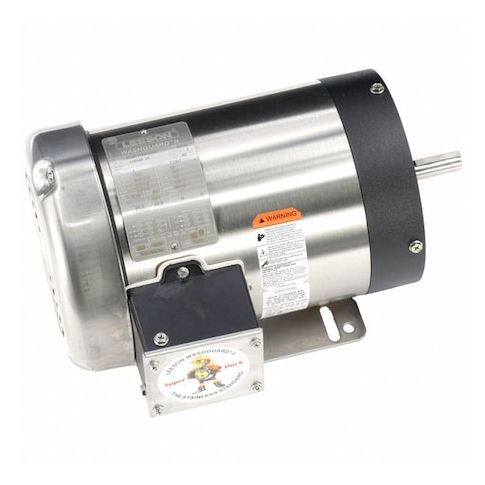

The Leeson Three-Phase Washdown Motor is designed for high-performance applications in demanding environments. Ideal for use in food processing, pharmaceutical, and other sanitary industries, this motor withstands frequent washdowns and harsh chemicals. Its totally enclosed air-over design and rugged construction ensure long-lasting reliability. With a continuous duty cycle and NEMA Design B rating, this motor provides consistent performance in a wide range of applications, including conveyor systems, pumps, and mixers. Its compact 56HC frame and compact size make it easy to integrate into tight spaces, making it a versatile solution for various industrial needs.
Top product features:
- Totally Enclosed Air-Over Motor Enclosure Design provides protection from dust and moisture.
- Motor Shaft Rotation is designed for clockwise and counterclockwise operation.
- Continuous Duty Cycle allows for uninterrupted operation under full load.
Top product applications:
- Food Processing
- Chemical Handling
- Pharmaceutical Manufacturing
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.2/1.6 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.90
- Package Width: 11.30
- Package Height: 11.90
- Package Weight: 38.20
Product info last updated on February 2, 2026 11:16am UTC
Category: Motors
