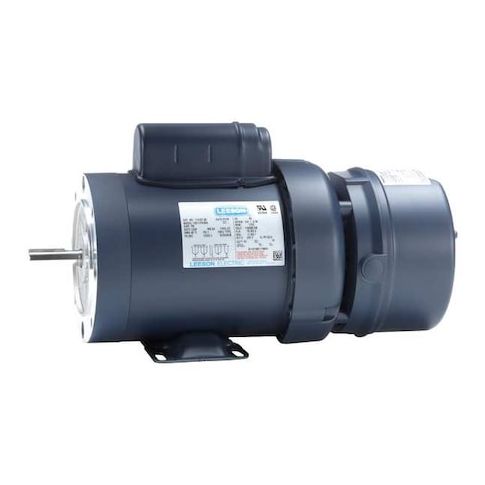

Brake Motor, 3/4hp, 1725 RPM, 115/208-230V AC MPN:114167.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G702577999
Brake Motor, 3/4hp, 1725 RPM, 115/208-230V AC
The Leeson Brake Motor is a reliable and efficient solution for a wide range of applications, including industrial, commercial, and residential use. With a 3/4 horsepower rating and 1725 RPM, it provides consistent performance and durability. The motor's capacitor-start design and totally enclosed fan-cooled enclosure ensure optimal heat dissipation and protection from environmental factors. Its compact design and C-face mounting type make it easy to integrate into existing systems. Suitable for continuous duty cycles, the Leeson Brake Motor is ideal for use in conveyor systems, pumps, fans, and other machinery that requires reliable braking and motor control.
Top product features:
- Totally Enclosed Fan Cooled design provides increased protection against dust and moisture
- Motor Design Capacitor-Start allows for efficient and reliable operation
- 56C Frame size enables compact installation and reduced space requirements
Top product applications:
- Industrial conveyor systems
- Textile machinery
- Packaging machinery
Brake Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 5.5 A Full Load Amps, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 11.00
- Package Height: 11.00
- Package Weight: 36.70
Product info last updated on February 11, 2026 5:02pm UTC
Category: Motors
