WashdownMotor, 1hp, 1750RPM, 56C, 230/460VAC MPN:119975.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G700722971

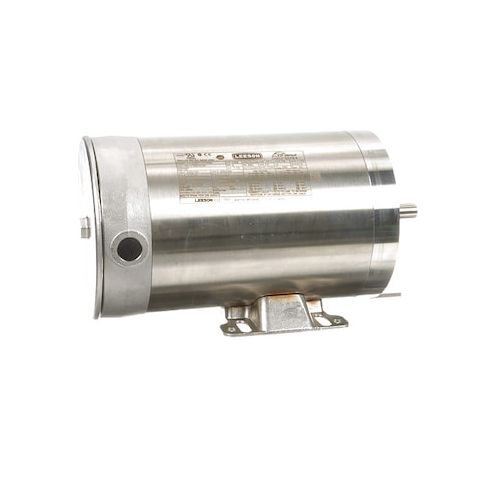

WashdownMotor, 1hp, 1750RPM, 56C, 230/460VAC
This 1hp, 1750RPM Washdown Motor from Leeson is designed for use in harsh environments, featuring a totally enclosed non-ventilated (TEF) enclosure that protects against dust and water. Its 56C frame and 230/460VAC rating make it suitable for applications requiring high power and reliability. Ideal for use in food processing, pharmaceutical, and chemical industries, this motor provides continuous duty cycle operation and is rated for use in temperatures up to 40°C. With a service factor of 1.2 and manual thermal protection, this motor is a reliable choice for applications demanding high performance and durability.
Top product features:
- Totally Enclosed Non-Ventilated Enclosure
- Removable Base
- Motor Shaft Rotation is CW/CCW
Top product applications:
- Washdown pumps and equipment in food processing and manufacturing facilities
- Water treatment and filtration systems
- Chemical handling and processing plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.8/1.4 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 10.44
- Package Height: 10.88
- Package Weight: 38.00
Product info last updated on February 1, 2026 10:43pm UTC
Category: Motors
