WashdownMotor, 1hp, 1760RPM, 56C, 230/460VAC MPN:119491.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G700722957

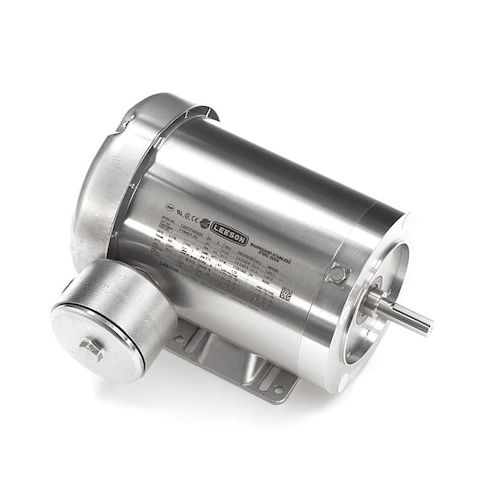

WashdownMotor, 1hp, 1760RPM, 56C, 230/460VAC
This 1hp washdown motor from Leeson is designed for use in harsh environments, featuring a totally enclosed fan-cooled enclosure and a Class F insulation rating. With a continuous duty cycle and a service factor of 1.2, it can operate reliably in demanding applications. Suitable for use in food processing, beverage manufacturing, and other industries where exposure to water and chemicals is a concern, this motor provides a durable and efficient solution. Its compact size and CW/CCW rotation make it easy to integrate into existing systems, making it an ideal choice for a variety of washdown applications.
Top product features:
- Three-phase design
- Totally enclosed fan-cooled enclosure
- Continuous duty cycle
Top product applications:
- Pump Applications
- Washing Equipment
- Chemical Handling
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.2/1.6 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.94
- Package Width: 13.06
- Package Height: 12.88
- Package Weight: 52.00
Product info last updated on February 11, 2026 4:45pm UTC
Category: Motors
