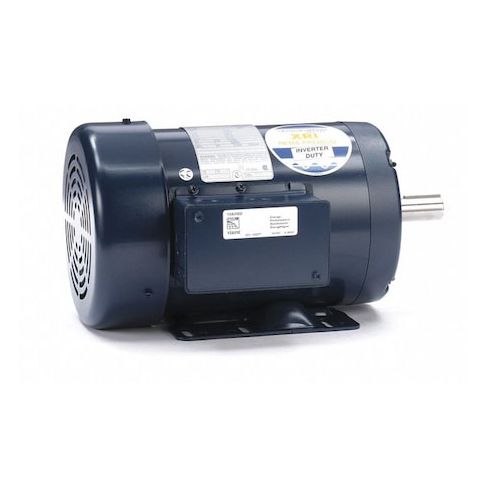

Three-Phase General Purpose Motor, 1 HP, 143T Frame, 230/460V AC Voltage, 1760 rpm Nameplate RPM MPN:143TTFR15642
Three-Phase General Purpose Motor, 1 HP, 143T Frame, 230/460V AC Voltage, 1760 rpm Nameplate RPM
This 1 HP three-phase general purpose motor is designed for a wide range of applications, including industrial and commercial use. Its totally enclosed fan cooled design and rigid base motor mounting ensure reliable operation and long lifespan. With a nameplate RPM of 1760 and a maximum ambient temperature of 40 degrees C, this motor can handle demanding tasks in various environments. Its high efficiency and continuous duty rating make it an ideal choice for applications requiring consistent performance and minimal downtime, such as in manufacturing, pumping, and material handling systems.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Rigid Base Motor Mounting Type
- Ball Motor Bearings
Top product applications:
- Pumps
- Industrial machinery
- Conveyors
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1760 rpm, Frame 143T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 3.2-3.2/1.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 10.44
- Package Height: 10.88
- Package Weight: 32.00
Product info last updated on February 10, 2026 4:36pm UTC
Category: Motors
