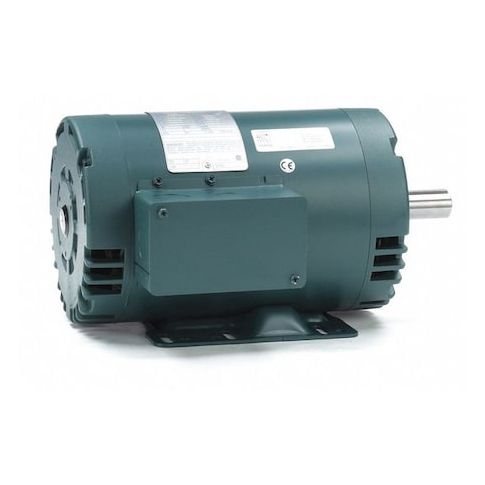

Three-Phase General Purpose Motor, 1 1/2 HP, 145T Frame, 230/460V AC Voltage, 1750 rpm Nameplate RPM MPN:145TTDR6028
This 1.5 HP three-phase general purpose motor from Leeson is designed for a wide range of industrial applications, including manufacturing, processing, and material handling. Its open drip-proof design and rigid base mounting make it suitable for use in harsh environments, while its T-Stat thermal protection ensures reliable operation. With a nameplate RPM of 1750 and a service factor of 1.15, this motor provides efficient and consistent performance. Ideal for continuous duty applications, it is also CE, CSA, and UL recognized, making it a reliable choice for industries requiring high-quality motors.
Top product features:
- Three-phase operation for increased power and efficiency
- Open drip-proof motor enclosure design for protection against dust and moisture
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Industrial Pump Applications
- Conveyor Systems
- Manufacturing Equipment
The LEESON - 145TTDR6028 is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This motor is designed to convert electrical energy into mechanical energy, making it suitable for power transmission and pneumatics applications in various industrial and commercial settings. It's versatile enough to be used across different sectors including manufacturing lines and HVAC systems.
Key Features of the LEESON - 145TTDR6028 General Purpose Motor:
- CC Number: The unique identifier assigned by EASA classifies this motor based on its design, specifications, and performance characteristics.
- Duty Cycle: This motor has a continuous duty cycle, suggesting it may operate for extended periods before requiring a rest period, which could indicate potential operational efficiency and endurance.
- Frame: Its frame size conforms to standard specifications ensuring compatibility with other machinery components.
- Full Load Amps: Draws maximum current of 4.8/2.4 A when operating at full capacity crucial for determining power supply requirements.
- Inverter Rated: Intended for use with variable frequency drives that may allow varying degrees of control over speed and torque
- Motor Bearings: Equipped with ball bearings intended to minimize friction between moving parts, potentially facilitating smoother operation under different load conditions
- Nominal Efficiency: Provides an energy performance measure of 86.5%, which suggests the potential effectiveness in converting electrical power into mechanical power
- Voltage Compatibility: Is rated for operation within voltage levels ranging from 200-230/440V AC up to 208-230/460V AC
- operating outside these ranges could result in damage or performance loss
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.44
- Package Width: 10.44
- Package Height: 10.88
- Package Weight: 48.00
