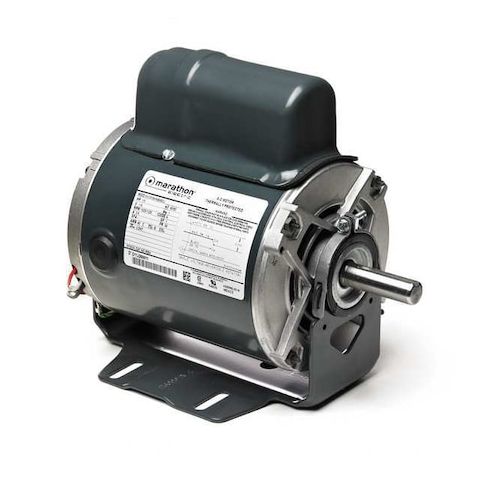

Capacitor-Start General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56 Frame MPN:056C17D5339
Capacitor-Start General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56 Frame
This 1 hp capacitor-start motor is a versatile and reliable solution for a wide range of applications. Suitable for use in 115/230V AC environments, it offers a single speed of 1,725 RPM, making it ideal for tasks that require consistent power output. The motor's open drip-proof enclosure design provides protection against dust and water, while its continuous duty cycle ensures it can operate for extended periods without interruption. Perfect for use in commercial and industrial settings, this motor is a cost-effective and efficient choice for applications such as pumps, fans, and conveyor systems.
Top product features:
- Capacitor-start design for improved motor efficiency
- Single-phase operation for simplified installation and control
- Open drip-proof enclosure design for reduced maintenance and exposure to the environment
Top product applications:
- Pumps and water treatment systems
- Fans and blowers
- Machine tools and manufacturing equipment
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 13.6/6.8 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.25
- Package Width: 9.62
- Package Height: 7.75
- Package Weight: 29.00
Product info last updated on February 6, 2026 2:49am UTC
Category: Motors
