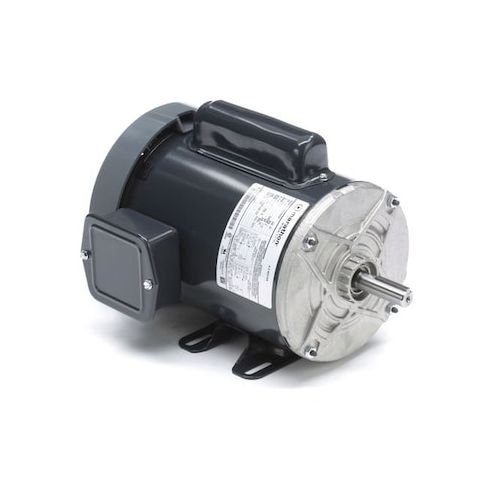

Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/230V AC Voltage, 56 Frame MPN:5KC49UN6065
Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/230V AC Voltage, 56 Frame
The Leeson Capacitor-Start General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in 115/230V AC environments, this motor delivers 1/2 hp of power with a nameplate RPM of 1,140. Its capacitor-start design and totally enclosed fan-cooled enclosure ensure optimal performance and durability. With a continuous duty cycle and a service factor of 1.15, this motor is ideal for use in industrial and commercial settings, such as manufacturing, material handling, and HVAC systems. Its compact size and rigid base mounting make it easy to integrate into existing systems.
Top product features:
- Totally Enclosed Fan Cooled motor design for improved heat dissipation and reliability
- Motor design allows for Capacitor-Start operation for efficient and reliable power delivery
- Single Phase motor design for compatibility with common household power outlets
Top product applications:
- Industrial Conveyors
- Pumps and Pumps Systems
- Fans and Blowers
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 9.4/4.7 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.19
- Package Width: 10.94
- Package Height: 9.50
- Package Weight: 35.00
Product info last updated on February 11, 2026 7:47am UTC
Category: Motors
