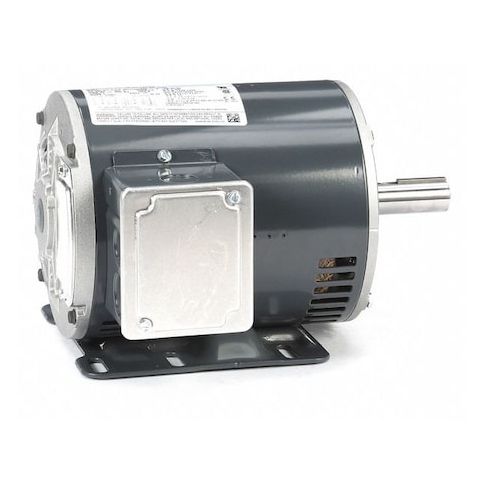

Three-Phase General Purpose Motor, 1 HP, 56HZ Frame, 208-230/460V AC Voltage, 1, 725 Nameplate RPM MPN:056T17D3301
Three-Phase General Purpose Motor, 1 HP, 56HZ Frame, 208-230/460V AC Voltage, 1, 725 Nameplate RPM
This high-performance 1 HP three-phase general purpose motor from Leeson is designed for demanding applications that require reliability and efficiency. Suitable for continuous duty, it operates at 1,725 nameplate RPM and boasts a nominal efficiency of 77%. Its robust construction features a steel frame, rigid base motor mounting, and ball bearings for smooth operation. With a service factor of 1.15, it can handle increased loads when needed. Ideal for use in industrial settings, such as manufacturing, pumping stations, and HVAC systems, this motor provides a reliable and cost-effective solution for a wide range of applications.
Top product features:
- Three-phase operation allows for efficient power usage and reduced energy consumption.
- Open drip-proof motor enclosure design provides protection against dust and moisture.
- Ball motor bearings ensure smooth and quiet operation.
Top product applications:
- Pumps and water treatment systems
- Fans and ventilation systems
- Conveyor belts and material handling systems
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 HP, Nameplate RPM 1,725, Frame 56HZ, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 3.4-3.6/1.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 77 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.38
- Package Width: 10.50
- Package Height: 8.12
- Package Weight: 27.00
Product info last updated on February 14, 2026 11:57pm UTC
Category: Motors
